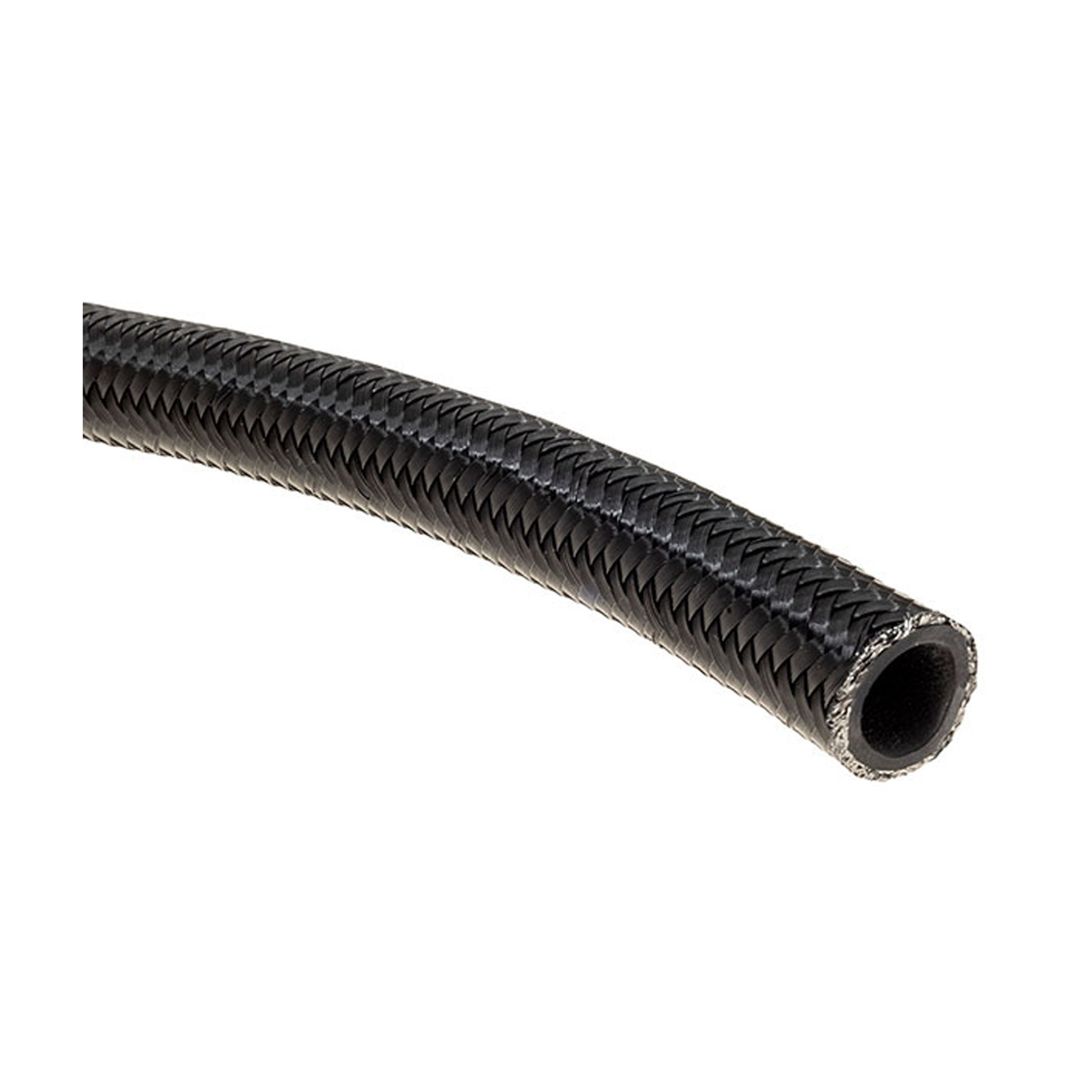

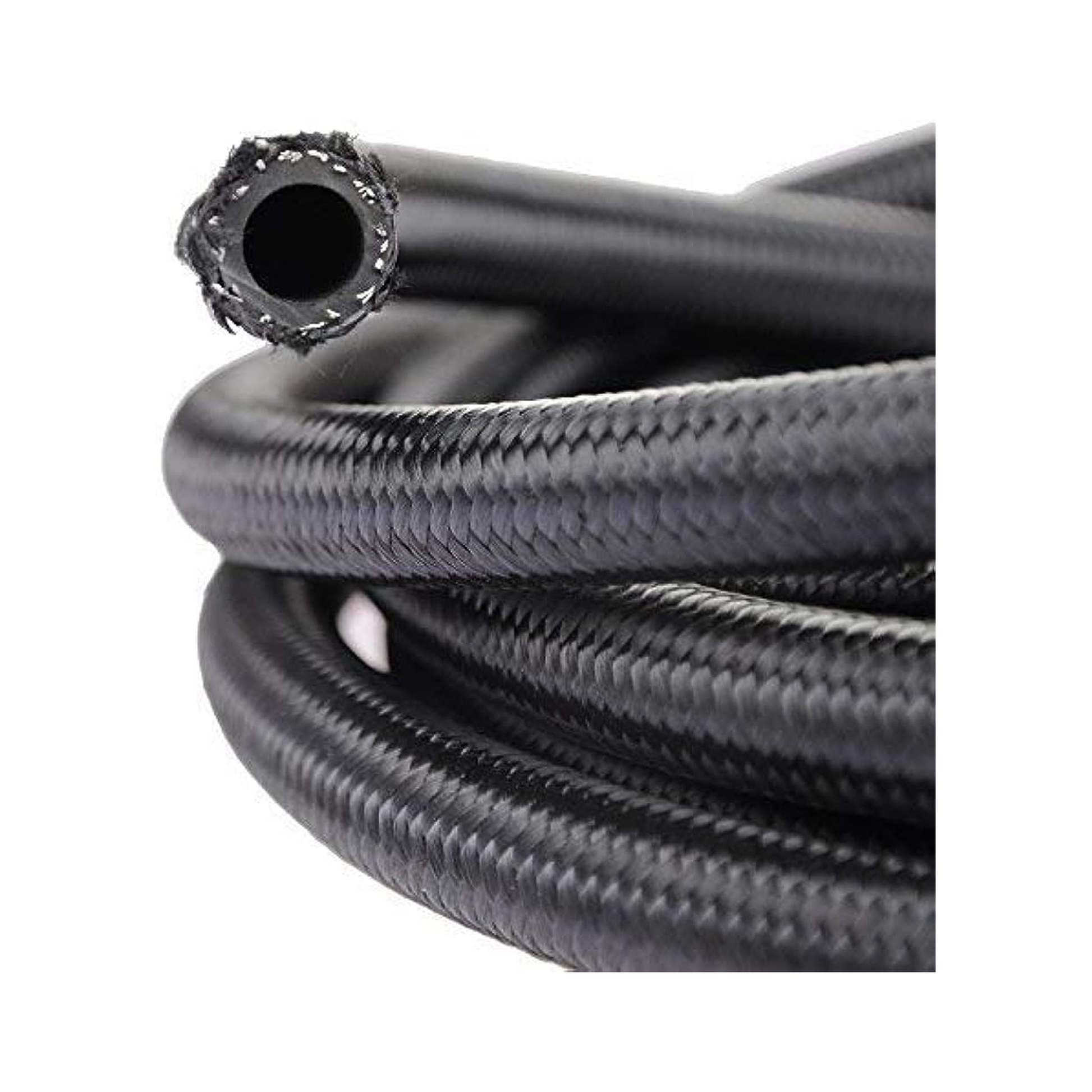

210 SERIES NYLON STAINLESS STEEL BRAIDED AN HOSE (RUBBER CORE)

210 series hose is for performance and racing enthusiasts who want high quality light weight hose that is easier to assemble than traditional braided steel hose.

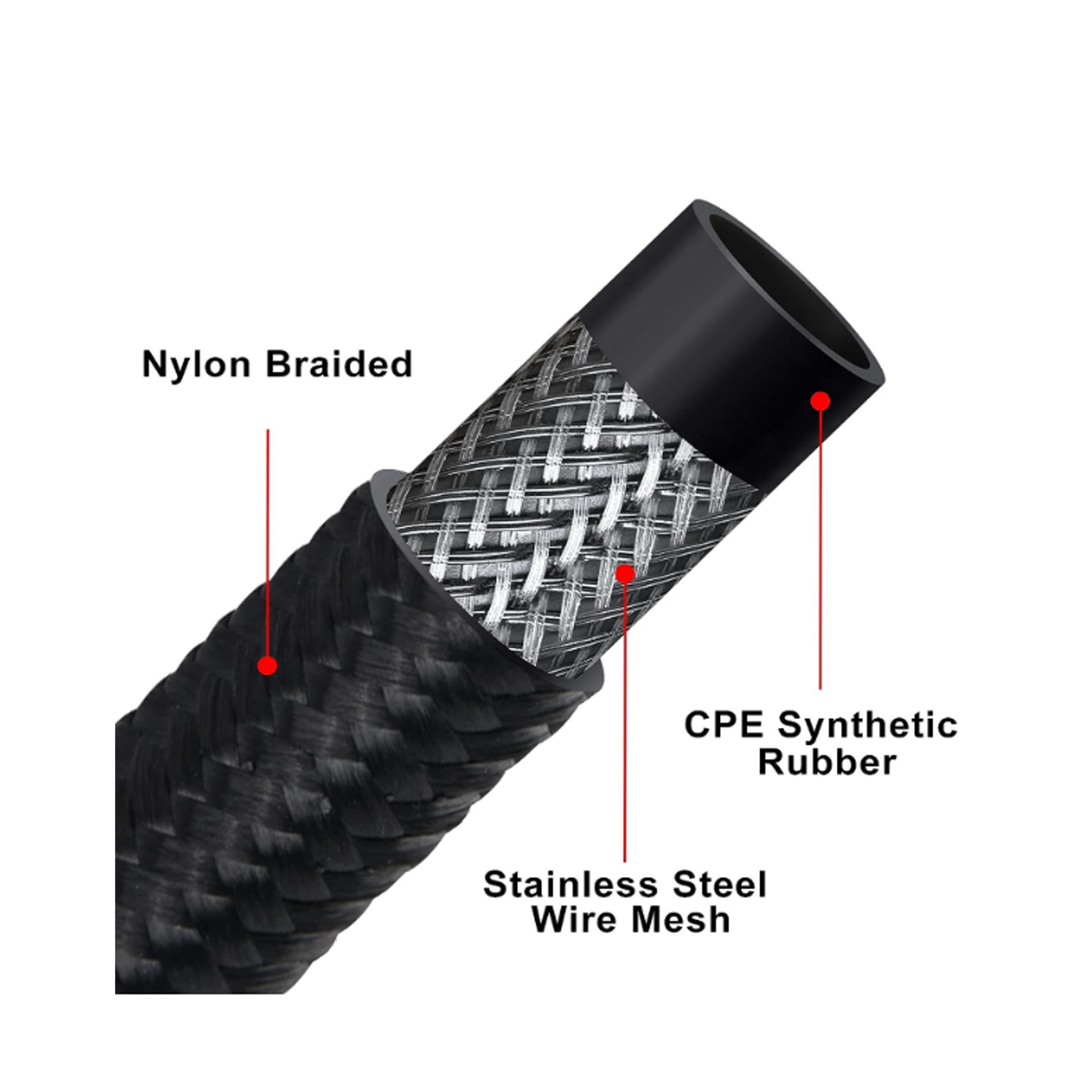

* Constructed with a braided nylon outer shield for abrasion resistance.
* Combined with a reinforced inner Chlorinated Polyethylene(CPE) rubber liner
* For use with fuel systems, methanol, oils, lubricants, E85, E10, coolant systems and vacuum applications.
* To be used with our Swivel fittings here and here

Minimum temperature -40 °C, Maximum the temperature 150°C

Rubber-core hose measurement (200/210/500 Series) inner diameter:

AN3 = 3/16"" ~4.8mm
AN4 = 7/32" ~5.4mm
AN5 = 5/16" ~7.9mm
AN6 = 11/32 ~8.7mm
AN8 = 7/16" ~11.1mm
AN10 = 9/16" ~14.2mm
AN12 = 11/16" ~17.4mm
AN16 = 7/8" ~22.2mm
AN20 = 1-1/8" ~28.5mm

Priced per metre
