500 SERIES PUSH ON AN RUBBER HOSE (RUBBER CORE)

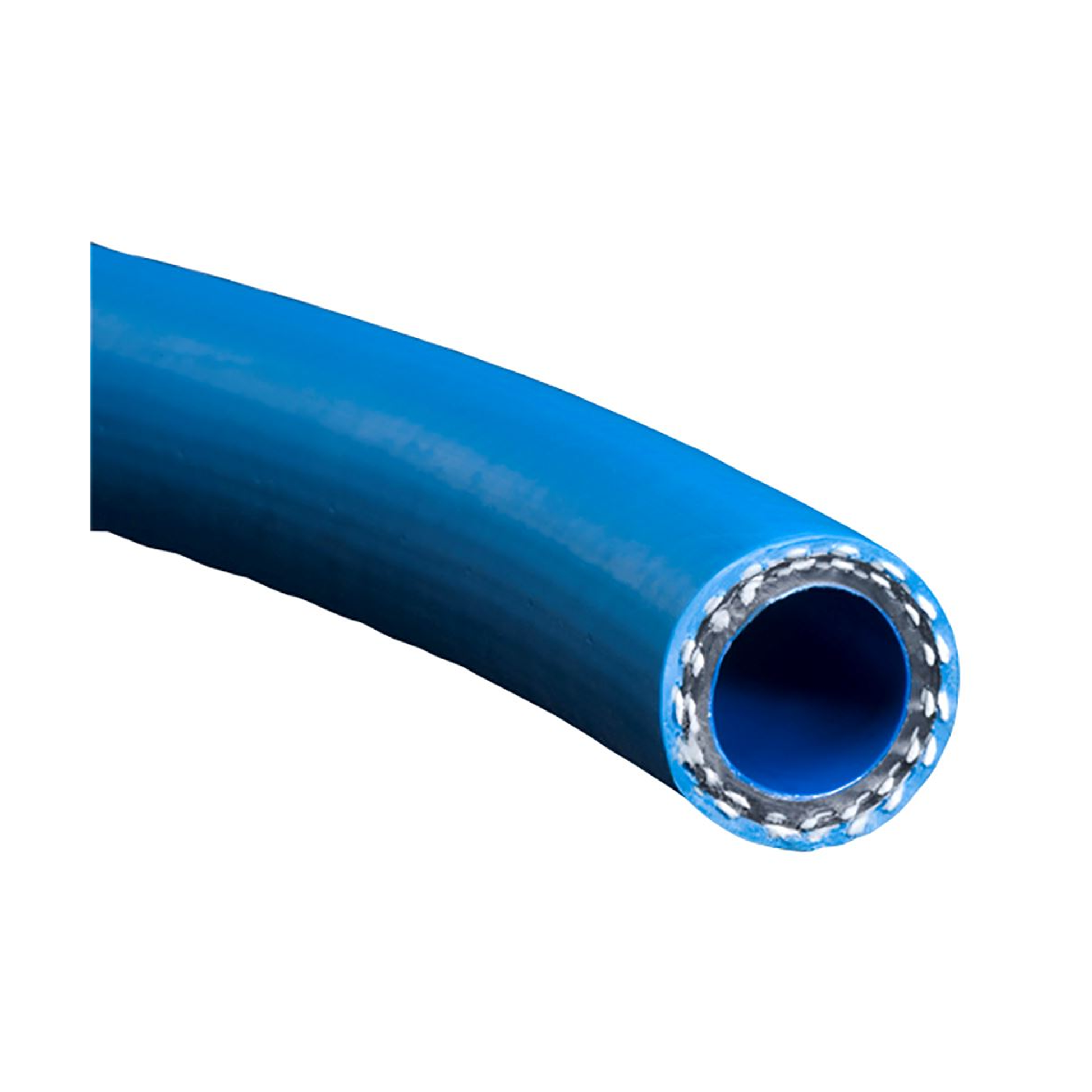

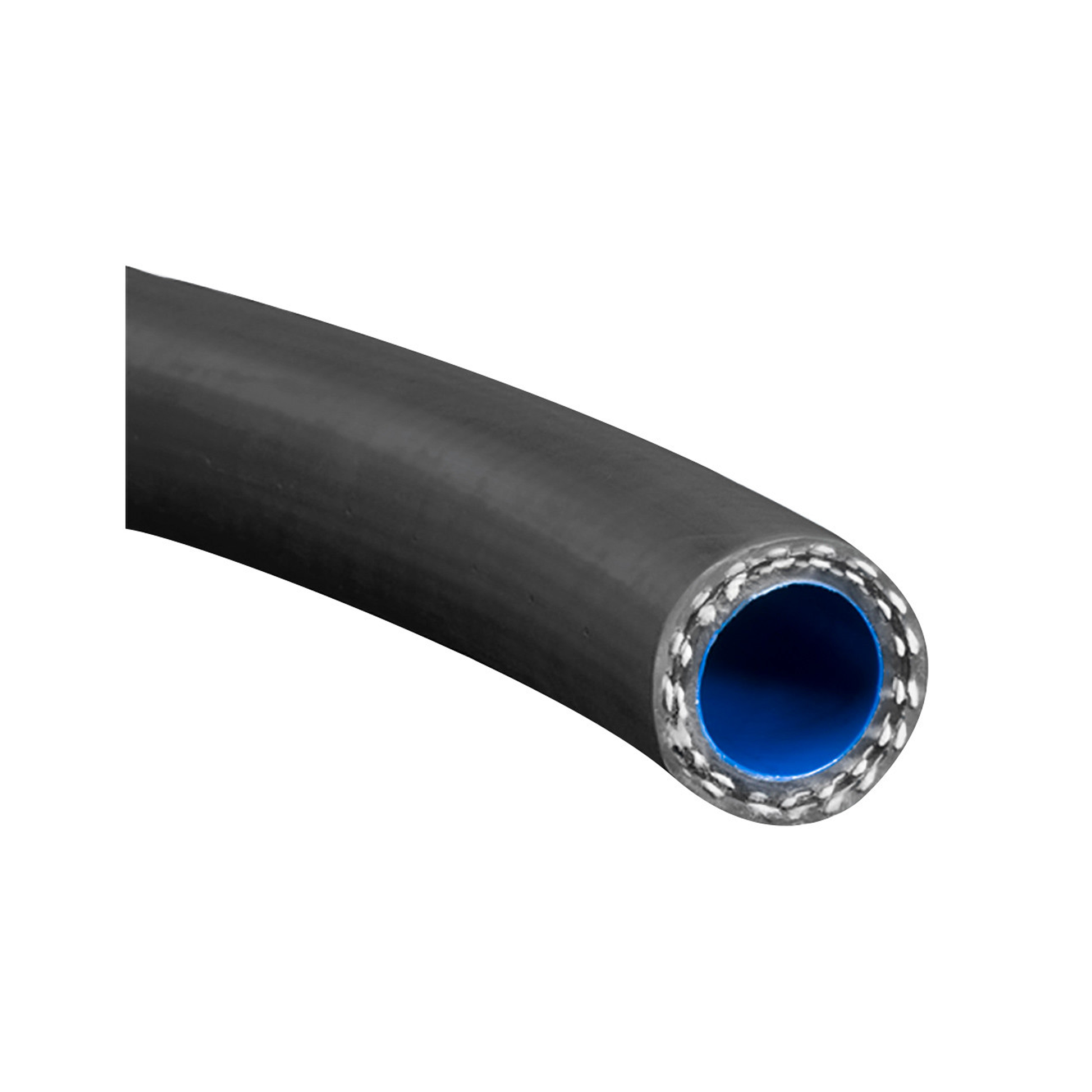

500 Series push lock hose is designed for the use with our push-on fittings. Available in black and blue.

* Reinforced with a nylon braid
* For use with fuel systems, oils, lubricants, coolant systems and vacuum applications.

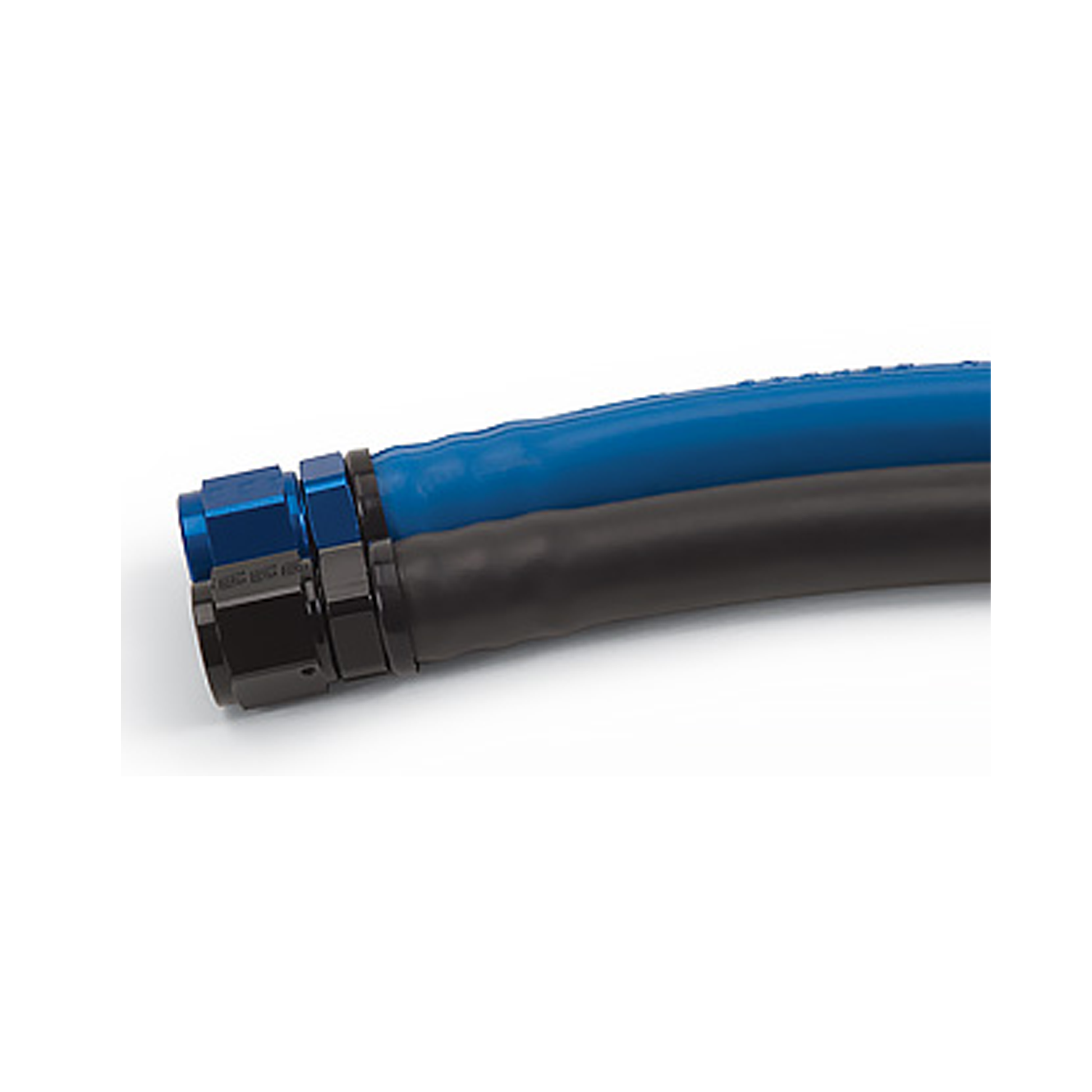

* To be used with our Push-on fittings here and here

Minimum temperature -40 °C, Maximum the temperature 100°C

The outer diameter will vary from manufacturer to manufacturer so we measure the inner diameter:

Rubber-core hose measurement (200/210/500 Series) inner diameter:

AN3 = 3/16"" ~4.8mm
AN4 = 7/32" ~5.4mm
AN5 = 5/16" ~7.9mm
AN6 = 11/32 ~8.7mm
AN8 = 7/16" ~11.1mm
AN10 = 9/16" ~14.2mm
AN12 = 11/16" ~17.4mm
AN16 = 7/8" ~22.2mm
AN20 = 1-1/8" ~28.5mm

Priced per metre
