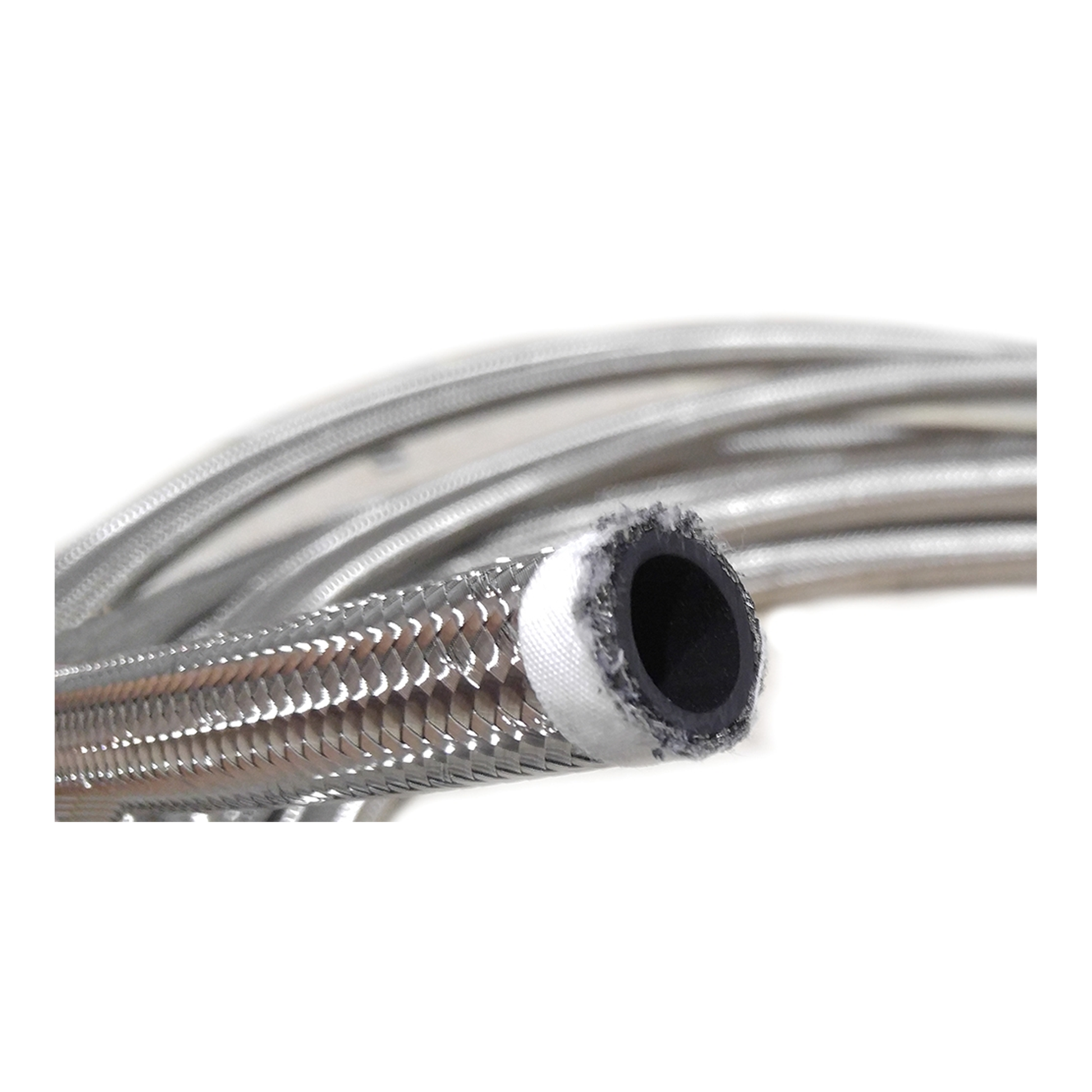

200 SERIES STAINLESS STEEL BRAIDED AN HOSE (RUBBER CORE)

200 series hose is a true double braided stainless hose that uses the highest quality stainless wire available in the world.

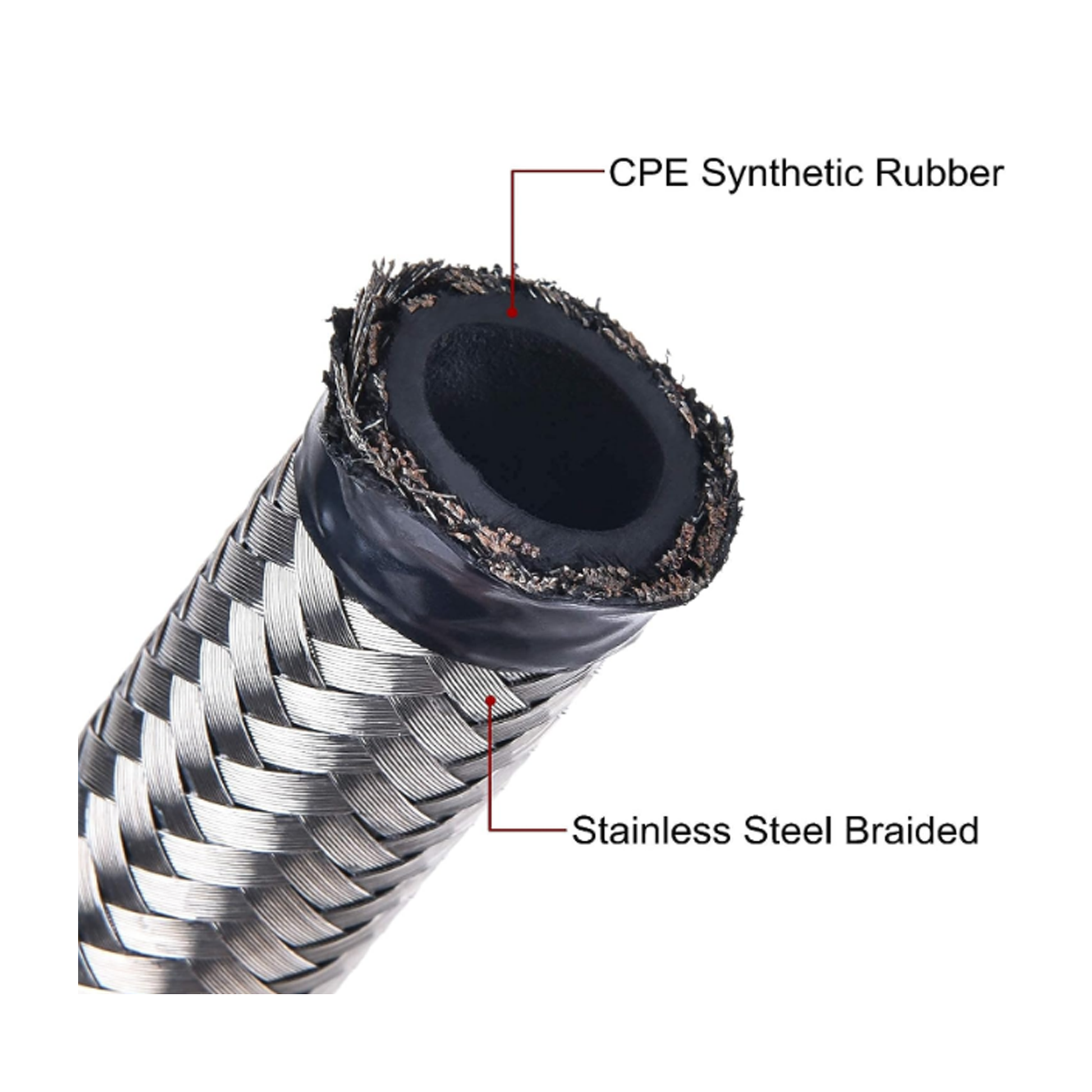

* Constructed with a stainless steel outer braid that resists abrasion and corrosion
* Combined with a reinforced inner Chlorinated Polyethylene(CPE) rubber liner
* For use with fuel systems, methanol, oils, lubricants, E85, E10, coolant systems and vacuum applications.
* To be used with our Swivel fittings here and here

Minimum temperature -40 °C, Maximum the temperature 150°C

Rubber-core hose measurement (200/210/500 Series) inner diameter:

AN3 = 3/16"" ~4.8mm
AN4 = 7/32" ~5.4mm
AN5 = 5/16" ~7.9mm
AN6 = 11/32 ~8.7mm
AN8 = 7/16" ~11.1mm
AN10 = 9/16" ~14.2mm
AN12 = 11/16" ~17.4mm
AN16 = 7/8" ~22.2mm
AN20 = 1-1/8" ~28.5mm

Priced per metre
