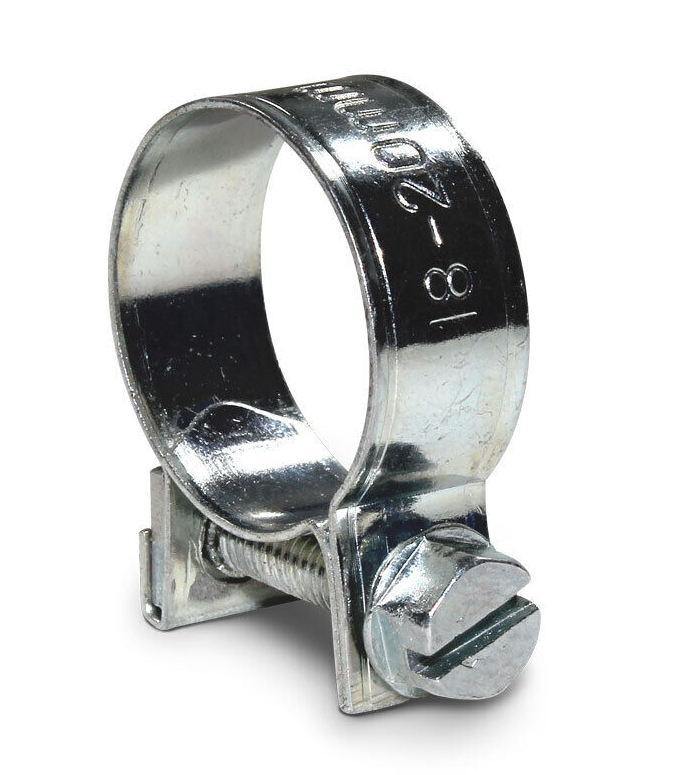

STAINLESS STEEL MINI HOSE JUBILEE CLIPS

These can additionally be used with push-on hose fittings. Measurements for pipes are below:

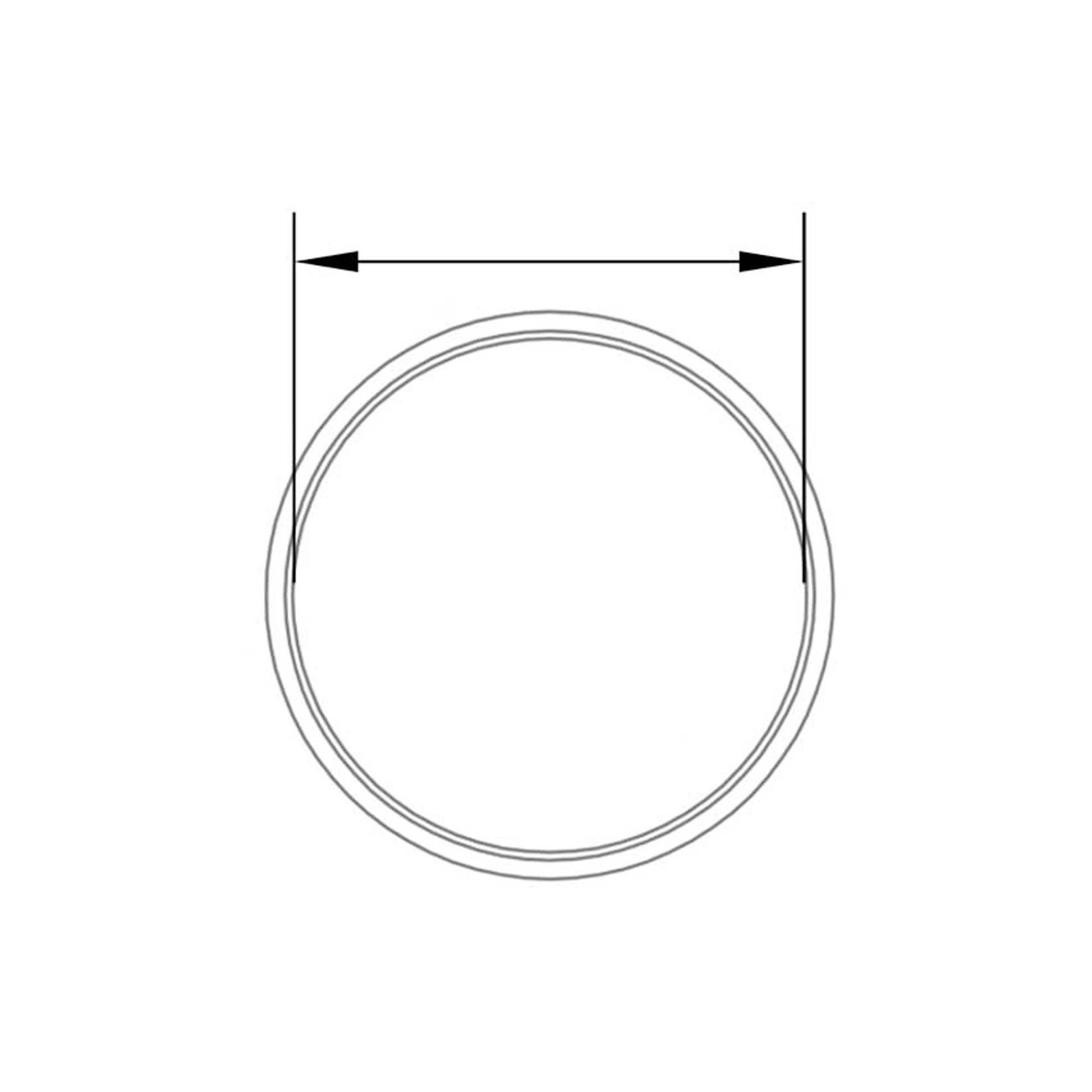

The outer diameter will vary from manufacturer to manufacturer so we measure the inner diameter:

Rubber-core hose measurement (200/210/500 Series)

AN3 = 3/16"" ~4.8mm
AN4 = 7/32" ~5.4mm
AN5 = 5/16" ~7.9mm
AN6 = 11/32 ~8.7mm
AN8 = 7/16" ~11.1mm
AN10 = 9/16" ~14.2mm
AN12 = 11/16" ~17.4mm
AN16 = 7/8" ~22.2mm
AN20 = 1-1/8" ~28.5mm

PTFE-core hose measurement (600/610 Series)

AN3 = 3/16" ~3.1mm
AN4 = 3/16" ~4.8mm
AN6 = 21/64" ~8.1mm
AN8 = 27/64" ~10.7mm
AN10 = 33/64" ~13.0mm
AN12 = 41/64" ~16.3mm
AN16 = 7/8" ~22.2mm
