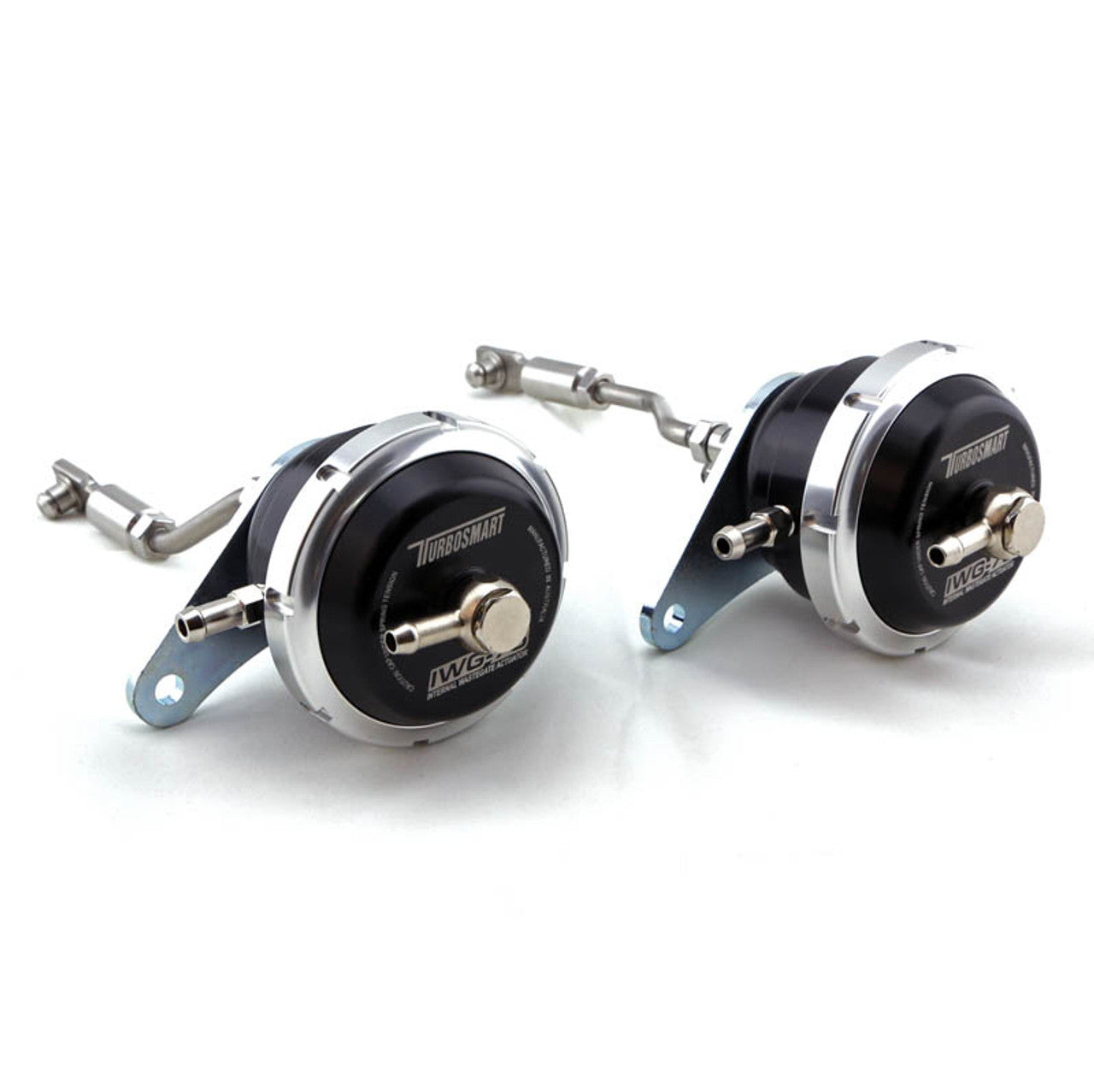

Turbosmart Twin Actuator (IWG75 19PSI) For Nissan GTR (12/07-Present) R35 TS-0615-2192

TURBOSMART
Turbosmart Upgraded Wastegate Actuators have been developed to provide maximum possible boost response for your factory frame turbocharger. The Turbosmart IWG75 Series of upgraded Actuators benefit from an increased ‘Working Ratio’ over the factory equipment resulting in improved boost response, throughout the RPM range.
This Improved ‘working ratio’ is achieved through an increase to the effective surface area of the diaphragm & revisions to the actual springs fitted resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.
Upgrading with the same base pressure as factory, you can expect a broader boost & torque curve through peak boost being achieved earlier in the RPM and being held longer, into higher RPM. These improvements can be amplified with higher base pressures, however tuning & recalibration is likely required.

Available In

7psi / 0.50 BAR

19psi / 1.31 BAR

24psi / 1.65 BAR

Features

Proprietary Silicon Nomex Diaphragm

Choice of Springs from 3psi to 26psi (Optional)

High-Grade Billet Aluminum Construction

Stainless Steel Rods and Clevis

Turbosmart Unique Locking Collar System

Notes

This is 2 actuators for this price. The 7psi version is a direct replacement for the factory item. All other versions will require tuning/calibration of your engine’s ECU.
